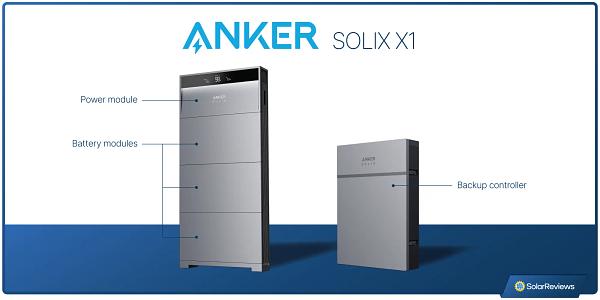

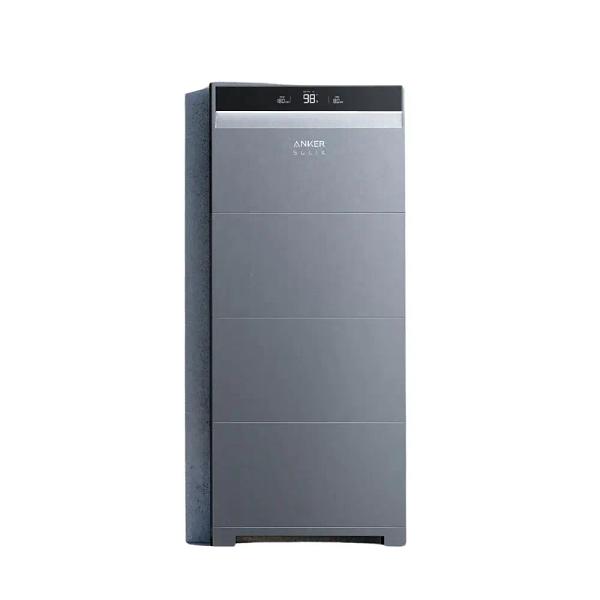

SOLIX X1 Home Energy Storage System
The Anchor SOLIX X1 is a modular home battery system designed for residential solar applications, featuring high-performance LFP battery technology and flexible installation options.
Key features
Modular design with 5 kWh per battery module (expandable to 30 kWh)
6-12 kW maximum continuous output power
AC-coupled system compatible with existing solar installations
Advanced battery management system for optimal performance and longevity
10-year warranty or 16.5 MWh throughput per 5 kWh module
Interested in this product?
Contact usTechnical specifications
Capacity
5 - 30 kWh
Chemistry
Lithium iron phosphate (LFP)
Warranty
10 years
Battery size
670 mm wide x 360 mm high x 150 mm thick
Inverter size
670 mm wide x 435 mm high x 150 mm thick
Inverter weight
30 kg
Battery weight
51 kg
Max. power
6-12 kW
Cycles
3,300 full cycles
Mounting
Wall or floor mounting
Ip classification
NEMA 4 (IP65) outdoor use
