Growatt Home Battery with Backup in Heemstede

Heemstede, Noord-Holland

1/7

Interested in a similar project?

Contact us for more information about how we can help you with a similar installation.

Request a quote

Project Description

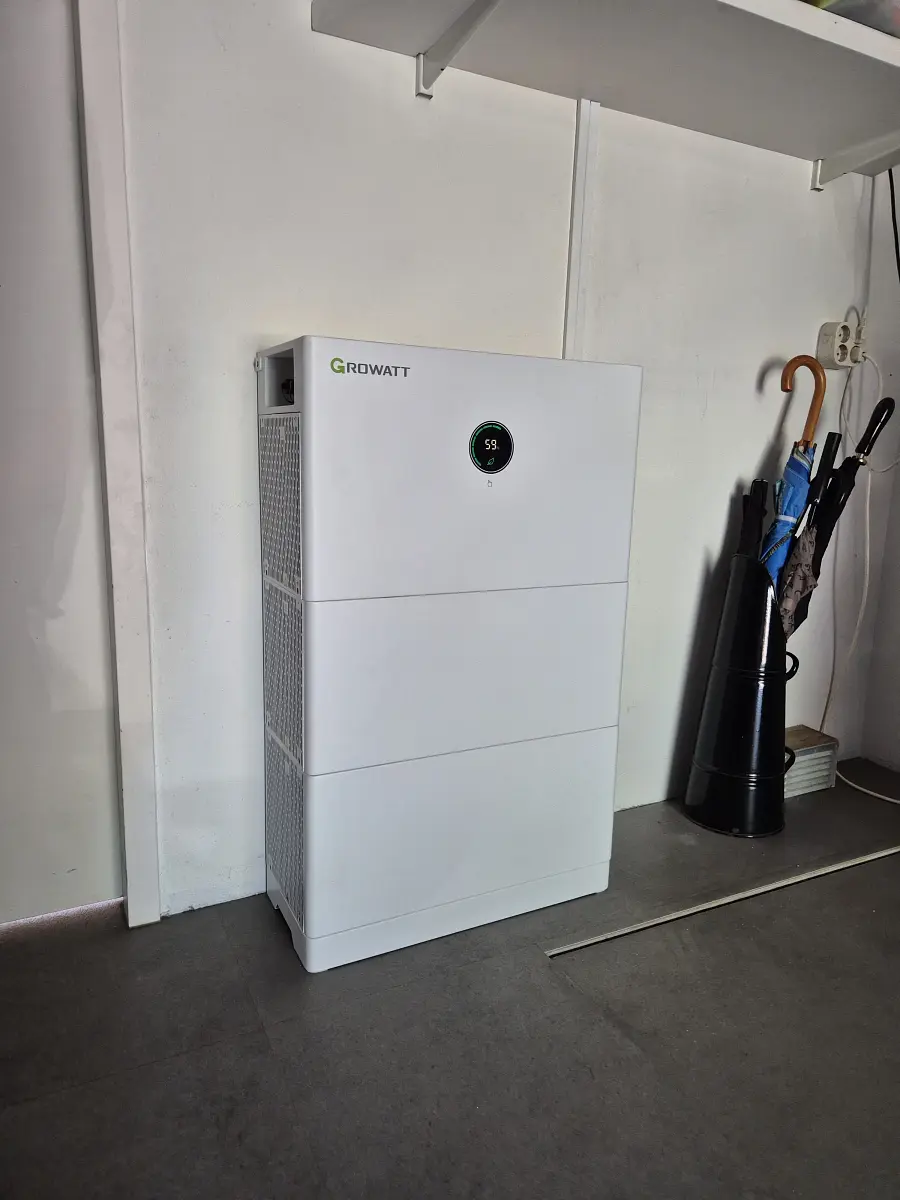

We installed the latest Growatt inverter with a backup function at a home in Heemstede. The existing Growatt inverter has been replaced by this new hybrid model, which controls both the 14 solar panels on the roof and the 15 kWh home battery. One system for generation, storage, and emergency power.


The major step forward is the backup function. Whereas a separate device was previously needed to provide emergency power to the home during a power outage, this function is now built into the inverter itself. If the grid goes down, the system automatically switches over and continues to supply power to the home, up to the inverter’s maximum capacity. Lighting, the refrigerator, the internet, and other essential appliances therefore continue to run as if nothing is wrong.


Apart from power outages, the 15 kWh battery simply does what it’s designed to do every day: store self-generated solar power for the evening and manage fluctuations in electricity prices efficiently. And if a power outage lasts longer, the solar panels can continue to recharge the battery in the meantime.


Because we replaced the existing inverter instead of installing a separate system alongside it, the setup remains streamlined, and everything works together within a single Growatt environment, including monitoring via a single app.


Want to know if a home battery with backup is right for your home? Contact us.

The customer's experience

"Topservice en vakwerk van Suncharged!
Via een positieve ervaring van een collega kwam ik terecht bij Suncharged. Op hun website zag ik dat ze veel ervaring hebben met Growatt-installaties, wat voor mij de doorslag gaf.
Eigenaar Jildar kwam al binnen enkele dagen langs om de situatie thuis te bekijken en stelde
een zeer nette offerte op voor een nieuwe Growatt APX batterij inclusief de nieuwste omvormer met ingebouwde noodstroomvoorziening.
Ongeveer twee weken na akkoord kwam Koen de installatie ontzettend netjes aansluiten, waarbij mede-eigenaar Wouter ook uitstekend hielp. Alles werkt nu perfect en ik ben uiterst tevreden.
Jildar en Wouter bieden een geweldige, persoonlijke aanpak en staan altijd klaar om je vragen te beantwoorden. Ik kan Suncharged dan ook van harte aanbevelen!"

Featured products

Growatt

Growatt MOD 6000TL3-HU – 3-fase netgekoppelde omvormer 6.0 kW

This product is primarily suitable for residential installations and small-scale commercial projects that require a robust and efficient 3-phase inverter. The dual MPPT trackers make the system ideal for roofs with multiple orientations or...

    Battery Ready: Compatible with APX battery systems (see the configuration checklist in the appendix for the correct configurations)

    MPP voltage range: 140–1,000 V

    Rated DC voltage: 600 V

    Number of MPP trackers: 2

    Max. input current (per MPPT): 20 A

    Output Specifications (AC): Rated AC Power: 6000 W Max. AC Power: 6600 W Max. Output Current: 10 A AC Line Frequency: 50/60 Hz Number of Phases: 3

    Rated AC power: 6,000 W

    Max. AC power: 6,600 W

    Max. output current: 10 A

    AC line frequency: 50/60 Hz

    Number of phases: 3

    Integrated backup functionality: No additional backup device required.

    High efficiency: Achieves a maximum efficiency of 98.6%, resulting in optimal energy output and a quick payback period.

    Advanced monitoring: Comprehensive monitoring options via Wi-Fi, Ethernet, or RS485, with 24-hour monitoring of your own energy consumption.

    Reliable Safety: Multiple safety features, including AFCI and surge protection, ensure safe operation.

    APX Battery Systems

    140–1,000 V

    Two independent MPP trackers (MPPT): Optimizes energy yield, even in complex roof configurations or with varying orientations of solar panels.

    Integrated surge protection: Protects both the DC and AC sides with Type II SPDs (Surge Protection Devices).

    Arc-Fault Circuit Interrupter (AFCI): Detects and interrupts arcing to minimize the risk of fire.

    Natural convection cooling: This fanless design ensures quiet operation and increases the system's durability.

    Input Specifications (DC): Max. input power: 12,000 W Max. DC voltage: 1,000 V MPP voltage range: 140–1,000 V Nominal DC voltage: 600 V Number of MPP trackers: 2 Max. input current (per MPPT): 20 A

    Max. input power: 12,000 W

    Max. DC voltage: 1000 V

Growatt MOD 6000TL3-HU – 3-fase netgekoppelde omvormer 6.0 kW
View product
Growatt

Growatt APX 5.0M-B3 Hoogvoltage Batterijmodule - 5kWh

The Growatt APX 5.0M-B3 high-voltage battery module is the successor to the earlier APX series. This master module has an energy capacity of 5 kWh and serves as the foundation of your storage system. This modular system allows you to combine...

    Easy expansion: The system can be flexibly expanded to a maximum of 30 kWh using the APX 5.0P-B3 battery module.

    Communication port: CAN/RS485

    Protection rating: IP66

    Weight: 51 kg

    MOD-HU inverters

    Simple expansion

    APX 5.0P-B3

    Energy Optimization

    Quick installation

    Wide range of applications

    Strong protection

    Energy optimization: Module-level management ensures maximum yield and allows for the mixing of different modules.

    Rated power

    Battery Type

    Rated voltage, single-phase

    Rated voltage, three-phase

    Communication Port

    Level of Protection

    Quick installation: The stacked design, with no cables between the modules, reduces on-site installation time.

    Wide range of applications: The module is suitable for both single-phase and three-phase systems.

    Robust protection: The IP66 protection rating ensures safe operation when mounted on a wall or floor.

    Rated power: 5 kWh

    Battery type: cobalt-free lithium iron phosphate (LFP)

    Single-phase rated voltage: 400 V

    Rated voltage, three-phase: 750 V

Growatt APX 5.0M-B3 Hoogvoltage Batterijmodule - 5kWh
View product
Growatt

Growatt APX 5.0P-B3 Hoogvoltage Batterijmodule - 5kWh

The Growatt APX 5.0P-B3 High-Voltage Battery Module serves as an expansion for your energy storage system. You can use this module to increase the total storage capacity of an (existing) installation. You can easily stack the modules on top...

    System Control: This battery module requires the Growatt APX 5.0M-B3 master module, which houses the central management system.

    Weight: 45 kg

    Dimensions: 590 mm wide, 265 mm high, 255 mm deep

    Enclosure rating: IP66

    Cooling: natural convection

    Ambient temperature: -20°C to 55°C

    Manufacturer's warranty: 10 years

    System Control

    Growatt APX 5.0M-B3

    Compatible inverters

    Single-phase MIN-XH2 inverters

    Compatible inverters: The battery is compatible only with single-phase MIN-XH2 inverters and three-phase MOD-HU inverters.

    Three-phase MOD-HU inverters

    Large storage capacity

    Easy installation

    Flexible composition

    Wide range of applications

    High protection

    Rated power

    Battery Type

    Enclosure Class

    Ambient Temperature

    Large storage capacity: You can flexibly expand the system to a maximum capacity of 30 kWh.

    Manufacturer's Warranty

    Easy installation: The stacked design without intermediate cables makes the installer's job easy and straightforward.

    Flexible configuration: The energy management system supports the integration of new and old battery modules into a single system.

    Wide range of applications: The module is suitable for both single-phase and three-phase residential installations.

    High level of protection: The IP66-rated housing allows for wall or floor mounting in a variety of spaces.

    Rated power: 5 kWh

    Battery type: cobalt-free lithium iron phosphate (LFP)

Growatt APX 5.0P-B3 Hoogvoltage Batterijmodule - 5kWh
